| Brand Name : | JUKI |
| Model Number : | KJ-02 |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000set/months |
| Delivery Time : | 3-7 days |

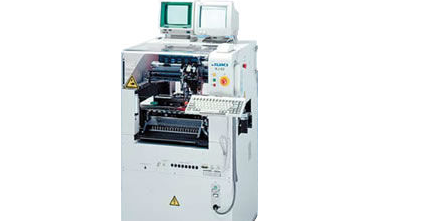

Second Hand SMT Machine JUKI KJ-02 Flex Chip With Good Condition
Description:
High-precision compact mounter that can be used flexibly for
prototyping, variety and variable quantity production. It has a
compact body with a height of 1.3m and saves installation space
approx.
Features:
30% compared with previous models. It can be operated, moved and
laid out easily. It has high placement precision equivalent to
higher models, so it can place the latest components, such as 0603
chips.
■ 0.76 Sec. / Component: chip (laser centering/ optimal)
■ 2.00 Sec. / Component: IC (Vision centering/ optimal)
■ One laser alignment sensor (1 nozzles) plus One VCS (Vision
Centering System) Camera
■ From 0603 (0201) to 50mm square components
※ Actual throughput may vary.
Specifications:
| Board size | Max | 203.2×152.4mm |
| Min | 50×30mm | |
| Component size | Laser recognition | 0603 (0201)～□20mm or 23.5×11mm |
| Vision recognition | □3mm～□24mm | |
| Placement speed | Laser recognition | 0.76 sec./ component |
| Vision recognition | 2 sec./ component | |
| Placement accuracy | Laser recognition | ±0.05mm |
| Vision recognition | ±0.04mm | |
| Feed inputs | Max. 40 on 8mm T/F*2 | |
※ Note: 1. When using large VCS camera.
2. 20 on 8mm T/F if the size of board is 330(X) mm x 250(Y) mm.
